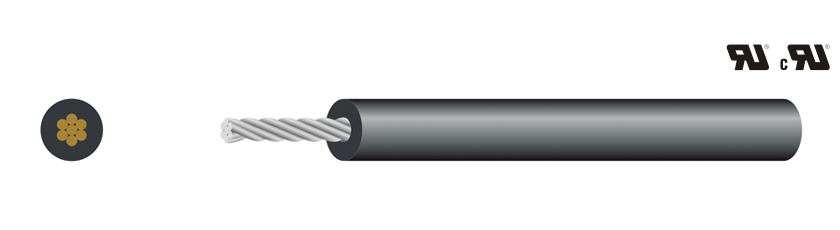

Product Description
Rated Voltage: 2000V
Rated temperature: 80°C
Conductor: tinned or bare, stranded or solid copper
Gauge: range from 26AWG to 18AWG
Insulation: color coded PVC
Flammability: pass UL VW–1 & CSA FT1 vertical flame test
Uniform insulation thickness of wire to ensure easy stripping and cutting
Limber.resistant to statics,acid,alkali,oil,moistureand fungi
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CUL File No.:E487227
Application
Test probe lead for electrical and electronic measuring and test equipment.
Packing
Plastic spool,Plywood drum.
Color
