Product Description
Rated Voltage: 600V
Rated temperature: 105°C

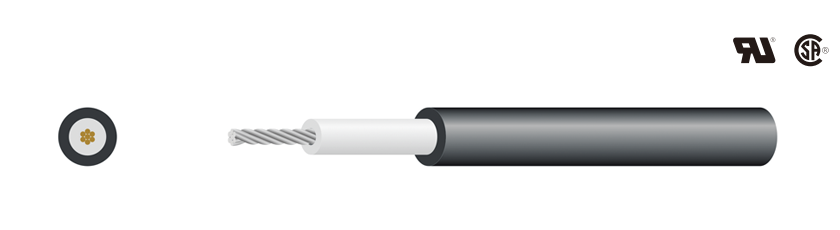

Conductor: tinned or bare , stranded or solid copper

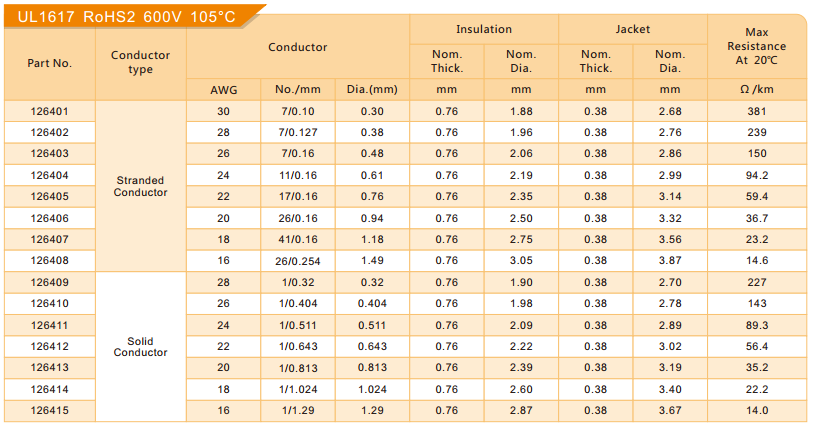

Gauge: range from 30AWG to 16AWG
Insulation: color coded PVC
Jacket: PVC thickness from 0.127mm to 1.016 mm
Flammability: pass UL VW –1 & CSA FT1 vertical flame test
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acids, alkalis, oils, moisture and fungi.
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CSA File No.:268104
Application
Internal wiring.
Packing
Plastic spool,Plywood drum.
Color
