Product Description
Rated Voltage: 30V
Rated temperature: 80°C

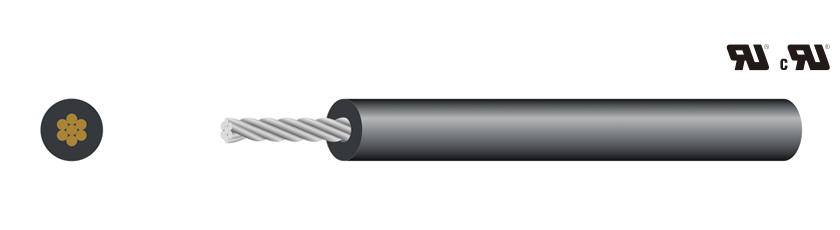

Conductor: tinned or bare , stranded or solid copper
Gauge: range from 30AWG to 20AWG
Insulation: color coded SRPVC
Flammability: pass UL VW-1 & CSA FT1 vertical flame test
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acids, alkalis, oils, moisture and fungi
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CUL File No.:E487227
Application
Internal wiring of Class 2 circuits in electronic equipment.
Packing
Plastic spool,Plywood drum.
Color
