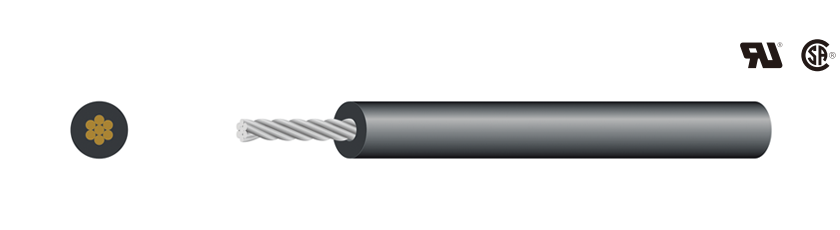

Product Description
Rated Voltage: 300V
Rated temperature: 105°C
Conductor: tinned or bare , stranded or solid copper
Gauge: range from 30AWG to 10AWG
Insulation: color coded PVC
Flammability: pass UL VW-1 & CSA FT1 vertical flame test
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acids, alkalis, oils, moisture and fungi
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CSA File No.:268104
Application
Internal wiring of appliances or electronic equipmentwhere not subjected to movement or mechanical damage.( 600 Volts peak for electronic use only ).
Packing
Plastic spool,Plywood drum.
Color
