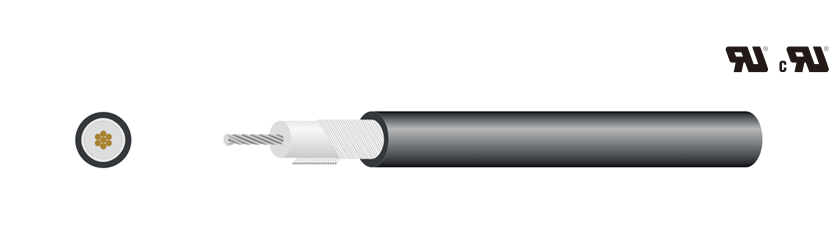

Product Description
Rated Voltage: not specified
Rated temperature: 80°C
Conductor: tinned or bare , stranded or solid copper
Gauge: range from 30AWG to 16AWG
Insulation: color coded SRPVC
Shield: tinned or bare copper wire spiral
Jacket: PVC
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acids, alkalis, oils, moisture and fungi
Flammability: pass UL VW-1 & CSA FT1 vertical flame test
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CUL File No.:E487227
Application
Internal wiring of electronic equipment where not exposed to movement or mechanical abuse).
Packing
Plastic spool,Plywood drum.
Color
