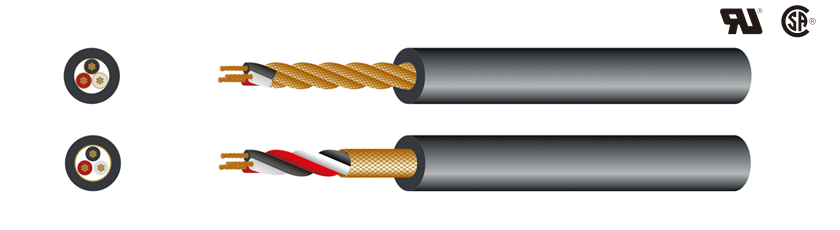

Product Description
Rated Voltage: 300V
Rated temperature: 105°C
Conductor: Stranded bare copper
Gauge: range from 18AWG to 10AWG
Insulation: color coded PVC,color code:

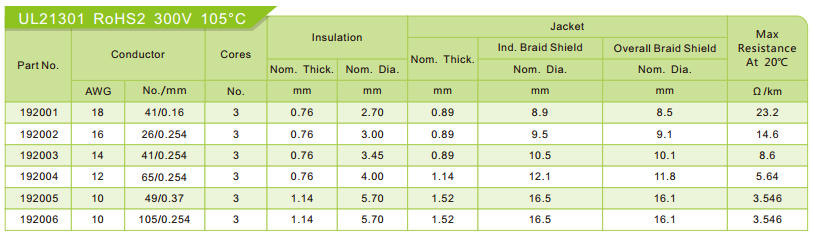

Chart Ⅱ
Shield: Bare copper braid
Jacket: PVC
Flammability: Pass UL VW-1 & CSA FT1 vertical flame test
Resistant to acid, alkali, oil, moisture and fungi
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CSA File No.:268104
Application
For use in appliances where: equivalence to hardservice cord is required.Metallic shielding is required around the conductors. An insulation gradejacket is required.
Packing
Plastic spool,Plywood drum.
Color
