Product Description
Rated Voltage: 30V
Rated temperature: 60°C
Conductor: Stranded tinned or bare copper
Gauge: range from 30AWG to 28AWG
Insulation: color coded SRPVC,color code:

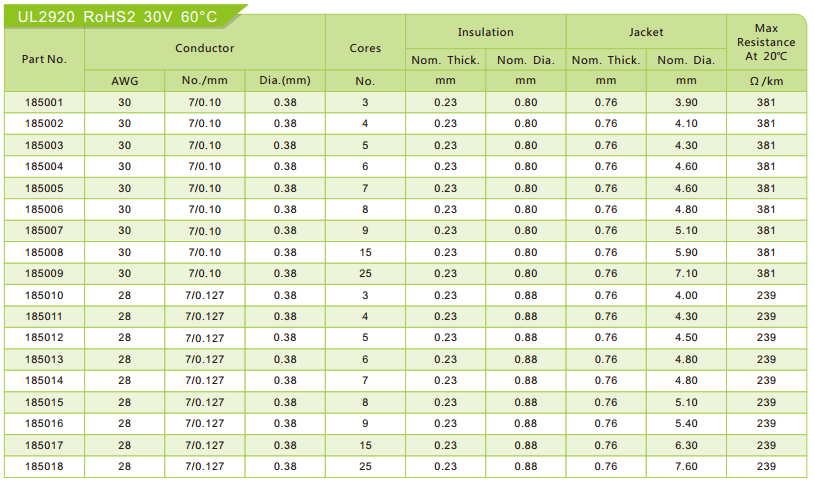

Chart Ⅱ
Shield: Aluminum mylar
Drain wire: Stranded tinned copper
Shield: Tinned copper braid
Jacket: PVC
Flammability: Pass UL VW-1 & CSA FT1 vertical flame test
Resistant to acid,alkali, heat cold oil and moisture
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CUL File No.:E487227
Application
Interconnecting cable for use with EDP equipment where terminated in connectors and located entirely exterior to the equipment, Class 2 wiring systems only.
Packing
Plastic spool,Plywood drum.
Color
