Product Description
Rated Voltage: 30V
Rated temperature: 60°C
Conductor: Stranded tinned or bare copper
Gauge: range from 28AWG to 26AWG
Insulation: color coded SRPVC,color code:

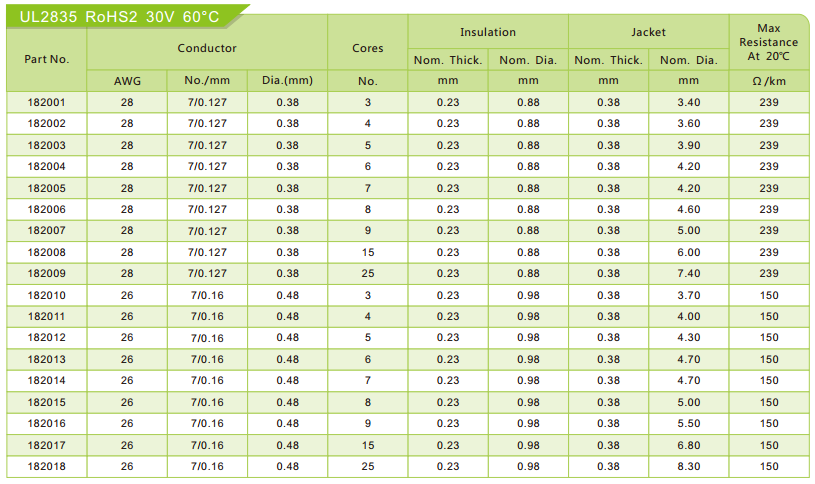

Chart Ⅱ
Shield: Aluminum mylar
Drain wire: Stranded tinned copper
Shield: Tinned copper braid
Jacket: PVC
Flammability: Pass UL VW-1 & CSA FT1 vertical flame test
Resistant to acid,alkali, heat cold oil and moisture
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CUL File No.:E487227
Application
Internal wiring in Class 2 circuits of electronic equipment where each end is terminated inconnectors. Internal wiring in Class 2 circuits ofelectronic equipment where not routed along walls,floors, or other abuse areas.
Packing
Plastic spool,Plywood drum.
Color
