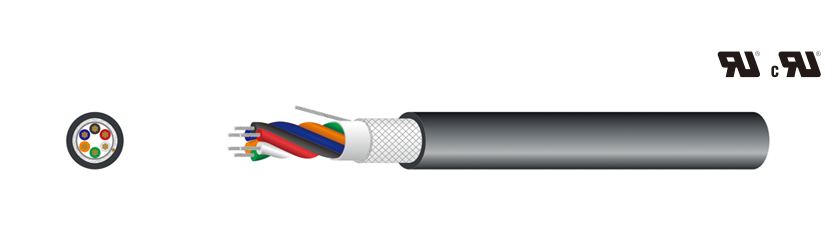

Product Description
Rated Voltage: not specified
Rated temperature: 80°C
Conductor: Stranded tinned or bare copper
Gauge: range from 30AWG to 28AWG
Insulation: color coded SRPVC,color code:

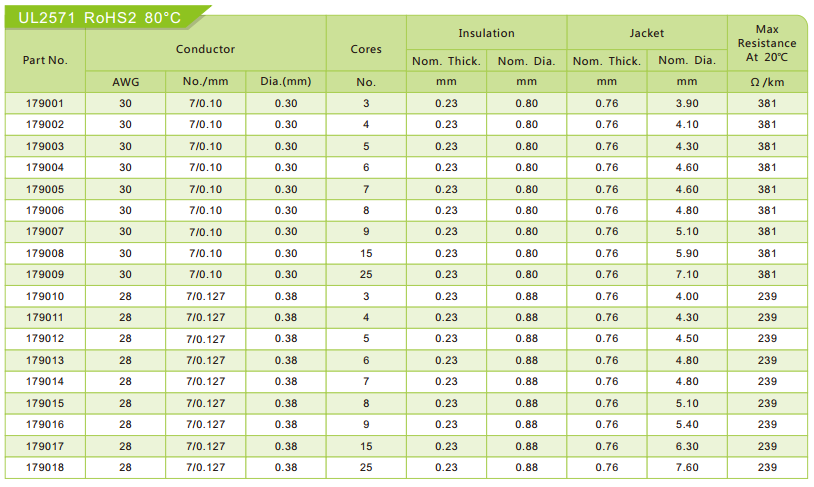

Chart Ⅱ
Shield: Aluminum mylar
Drain wire: Stranded tinned copper
Shield: Tinned copper braid
Jacket: PVC
Flammability: Pass UL VW-1 & CSA FT1 vertical flame test
Resistant to acid, alkali, heat, cold, ,oil and moisture
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CUL File No.:E487227
Application
Internal wiring or external interconnection of electronic equipment.
Packing
Plastic spool,Plywood drum.
Color
