Product Description
Rated Voltage: 30V
Rated temperature: 80°C
Conductor: Stranded tinned or bare copper
Gauge: range from 30AWG to 26AWG
Insulation: color coded PVC or SRPVC,color code:

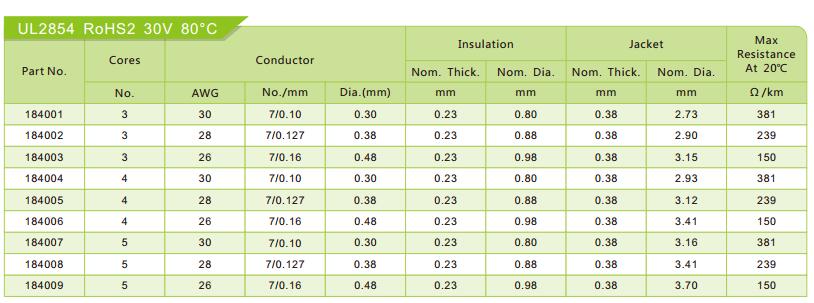

Chart Ⅱ
Shield: Tinned or bare copper spiral
Jacket: PVC
Flammability: Pass UL VW-1 & CSA FT1 vertical flame test
Resistant to acid,alkali,heat,cold, oil and moisture conforming RoHS
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CUL File No.:E487227
Application
Internal wiring of electronic equipment in Class 2 systems only.
Packing
Plastic spool,Plywood drum.
Color
