Product Description
Rated voltage: 30V
Rated temperature: 60°C or 80°C
Conductor: Stranded tinned or bare copper
Gauge: range from 30AWG to 26AWG
Insulation: color coded PVC or SRPVC,color code:

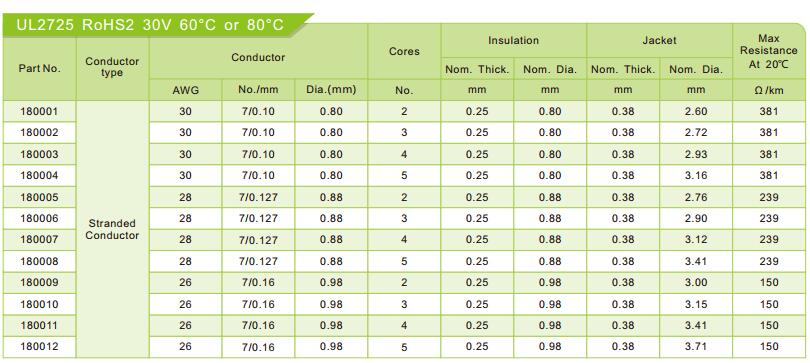

Chart Ⅱ
Shield: Tinned or bare copper spiral
Jacket: PVC, may be round or parallel wire
Flammability: Pass UL VW-1 vertical flame test
Resistant to acid ,alkali ,heat cold oil and moisture
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CUL File No.:E487227
Application
Internal wiring of electronic equipment in Class 2 systems only.
Packing
Plastic spool,Plywood drum.
Color
