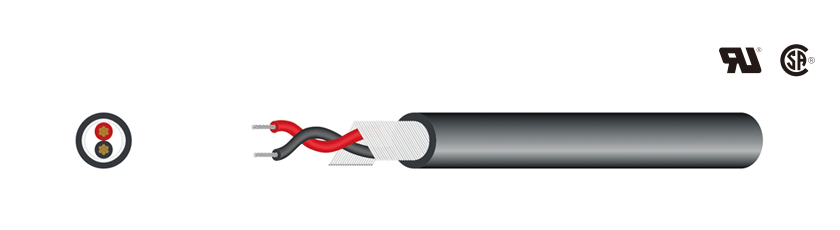

Product Description
Rated voltage: 300V
Rated temperature: 80°C
Conductor: Tinned or bare, stranded or solid copper
Gauge: range from 30AWG to 16AWG
Insulation : color coded PVC,color code:

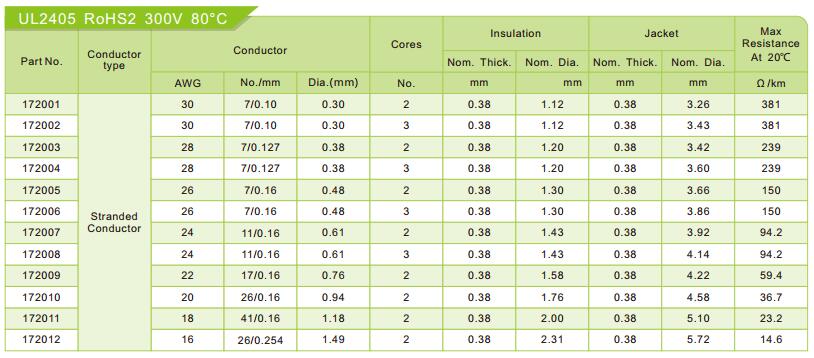

Chart Ⅱ
Shield: Tinned or bare copper spiral
Jacket: PVC
Flammability: Pass UL VW-1 & CSA FT1 vertical flame test
Resistant to acid, alkali, heat cold oil, and moisture
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CSA File No.:268104
Application
Internal wiring of electronic equipment.
Packing
Plastic spool,Plywood drum.
Color
