Product Description
Rated Voltage: 300V
Rated temperature: 80°C
Conductor: Stranded tinned copper
Gauge: range from 24AWG to 18AWG
Insulation: color coded PVC,color code:

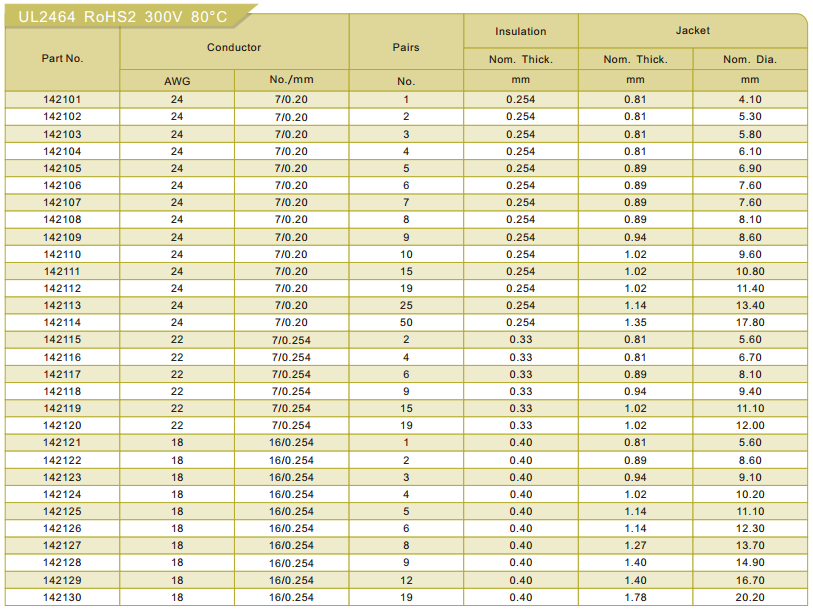

Chart Ⅲ
Shield: Overall Aluminum/Polyester Foil Overlapped
Drain wire: Stranded tinned copper
Jacket: PVC, PE, LSF(Low Smoke & Fume),LSZH(Low Smoke & Zero Halogen)
Flammability: Pass UL VW-1 & CSA FT1 vertical flame test
Resistant to acid,alkali, heat cold oil and moisture
Standard: UL758, UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CSA File No.:268104
Application
Internal wiring or external interconnection of electronic equipment.Computer Interconnects,EIA RS-232C interface,CAD/CAM
Packing
Plastic spool,Plywood drum.
Color
