Product Description
Rated Voltage: 30V
Rated temperature: 105°C
Conductor: Tinned or bare, stranded or solid copper
Gauge: range from 28AWG to 22 AWG
Insulation: color coded XLPVC (irradiated) or PVC,color code:

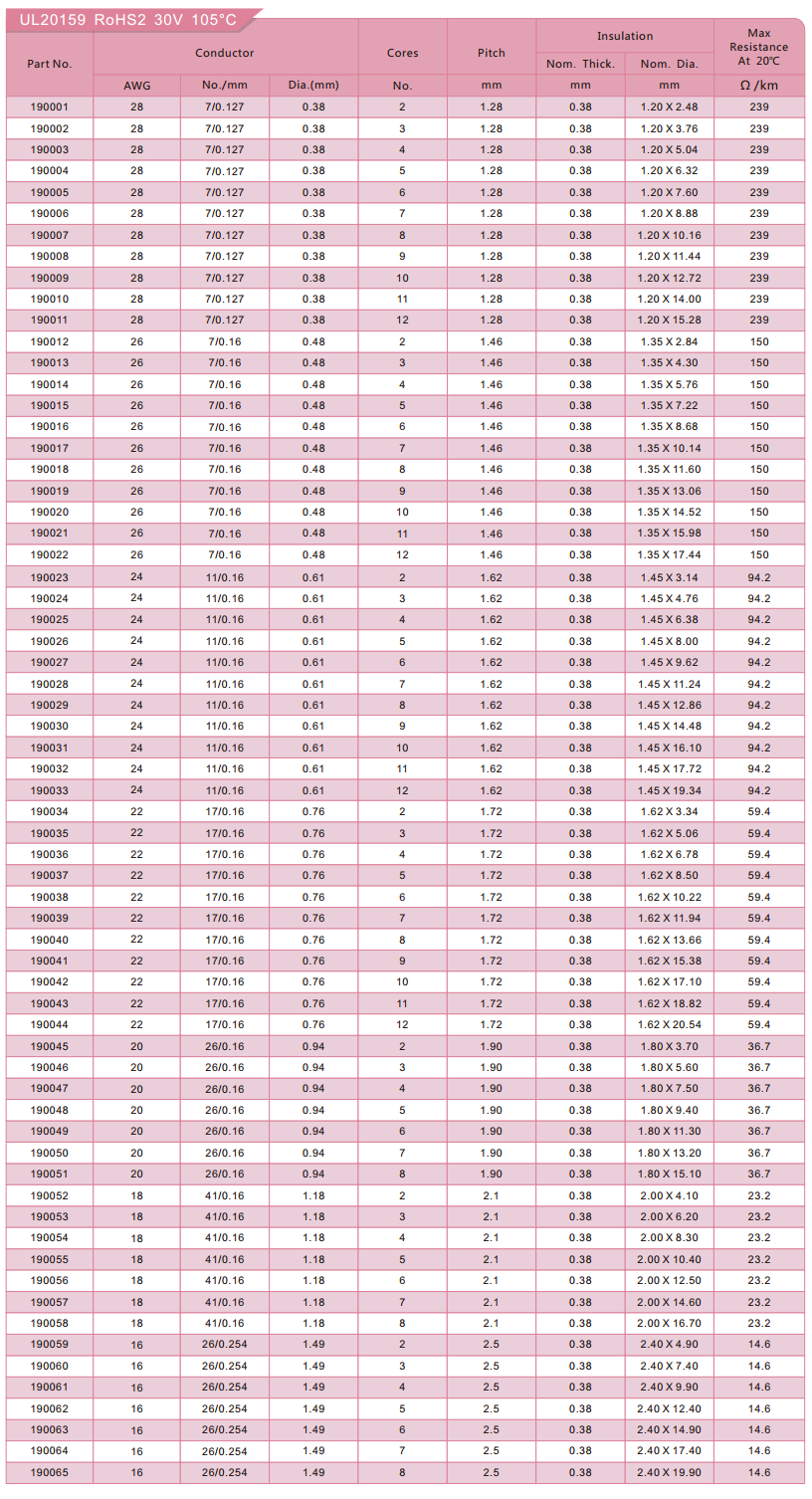

Chart Ⅱ
Flammability: Pass UL VW-1 & CSA FT1 vertical flame test
Uses standard thickness of insulation to ensure easy stripping and cutting
Resistant to acid ,alkali, oil, moisture and fungi
Standard: UL758, UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CUL File No.:487227
Application
Internal wiring in Class 2 circuits of electronic equipment(NOTE: If singles are used, ensurethe thickness at the bonded sections meets minimumrequirements for the style used.).
Packing
Plastic spool,Plywood drum.
Color
