Product Description
Rated Voltage: 300V
Rated temperature: 105°C
Conductor: Tinned or bare,stranded or solid copper
Gauge: range from 28AWG to 16AWG
Insulation: color coded XLPVC (irradiated) or PVC,color code:

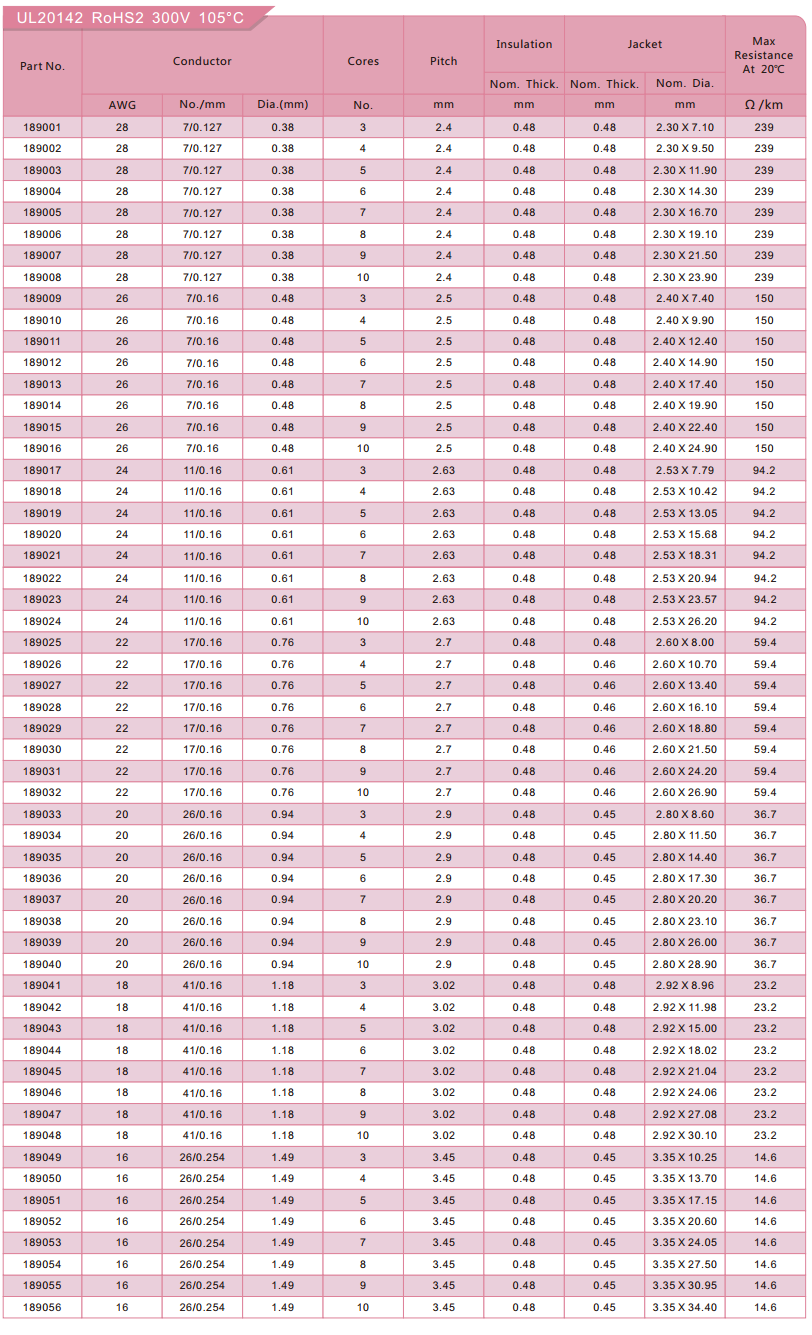

Chart Ⅱ
Flammability: Pass UL VW-1 & CSA FT1 vertical flame test
Uses standard thickness of insulation to ensure easy stripping and cutting
Resistant to acid,alkali, oil, moisture and fungi
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CUL File No.:E487227
Application
Internal wiring of electronic equipment.
Packing
Plastic spool,Plywood drum.
Color
