Product Description
Rated Voltage: 300V
Rated temperature: 80°C
Conductor: Tinned or bare,stranded or solid copper
Gauge: range from 28AWG to 18AWG

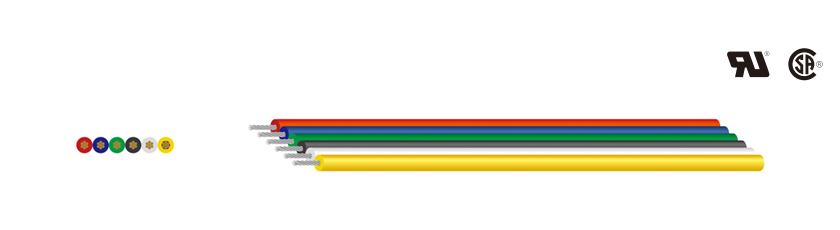

Insulation: color coded SRPVC,color code:

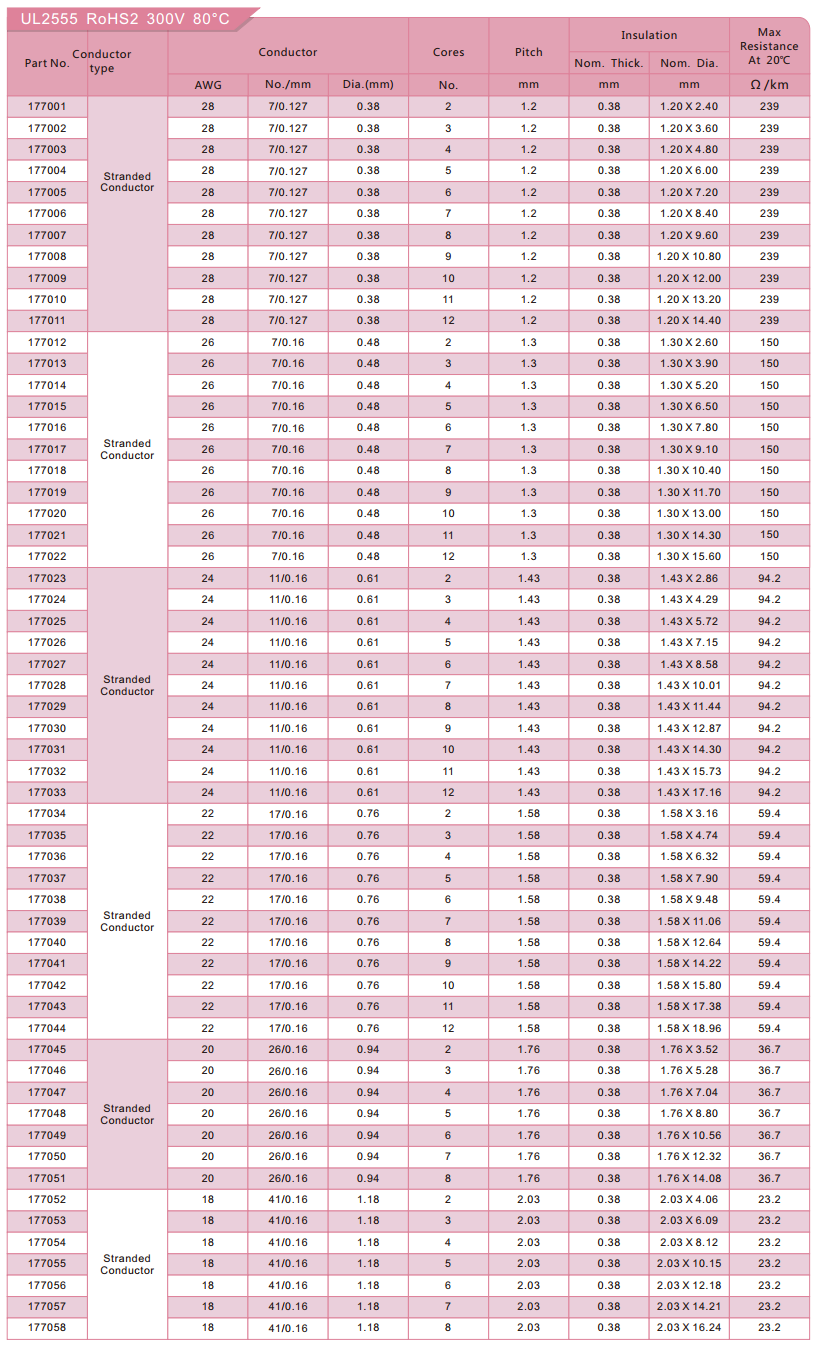

Chart Ⅱ
Flammability: Pass UL VW-1 & CSA FT1 vertical flame test
Uses standard thickness of insulation to ensure easy stripping and cutting
Resistant to acid,alkali,heat,cold. oil, and moisture
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CSA File No.:268104
Application
Internal wiring of electronic equipment.
Packing
Plastic spool,Plywood drum.
Color
