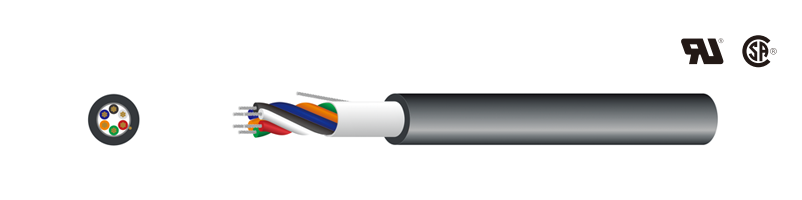

Product Description
Rated Voltage: 300V
Rated Temperature: 80°C
Conductor: Stranded tinned copper
Gauge: range from 24AWG to 22AWG
Insulation: color coded SRPVC,color code:over 10 cores
Chart Ⅱ,Not more than 10 cores 1-Black,2-White,3-Red,4-Green,5-Brown,6-Blue,7-Orange,8-Yellow,9-Purple,10-Grey
Shield: Overall Aluminum/Polyester Foil overlapped
Drain wire: Stranded Tinned Copper
Jacket: PVC, PE, LSF(Low Smoke & Fume),LSZH(Low Smoke & Zero Halogen)
Flammability: Pass UL VW-1 ＆ CSA FT1 vertical flame test
Resistant to acid,alkali,heat cold oil,and moisture
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CSA File No.:268104
Application
Internal wiring or external interconnection of electronic equipment.
Computer Interconnects,EIA RS-232C interface,CAD/CAM.
Packing
Plastic spool,Plywood drum.
Color
