Product Description
Rated Voltage: 300V
Rated Temperature: 80°C
Conductor: Stranded tinned copper
Gauge: 20AWG
Insulation: color coded PVC,color code:

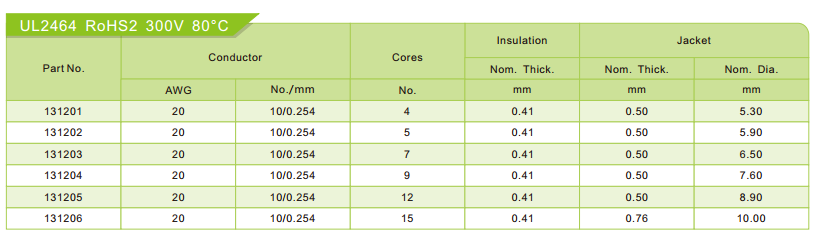

Chart Ⅱ
Jacket: PVC ,PE,LSF(Low Smoke & Fume),
LSZH(Low Smoke & Zero Halogen)version
Flammability: Pass UL VW-1 ＆ CSA FT1 vertical flame test
Resistant to acid,alkali,heat cold oil,and moisture
Standard: UL758,UL1581, CSA C22.2 No.210.2
UL File No.:E487227 CSA File No.:268104
Application
Internal wiring or external interconnection of electronic equipment.
Computer Interconnects,EIA RS-232C interface,CAD/CAM
Packing
Plastic spool,Plywood drum.
Color
